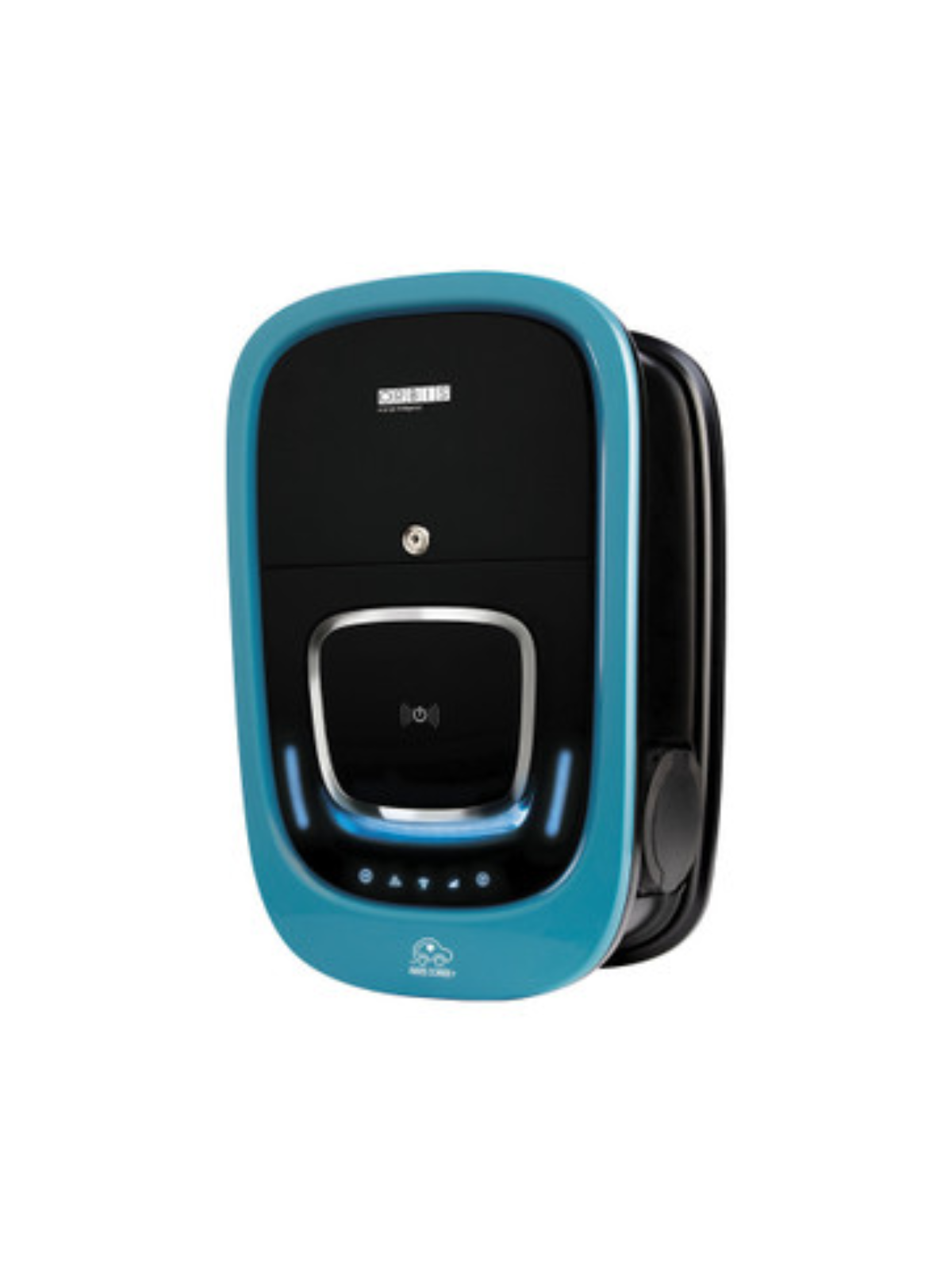

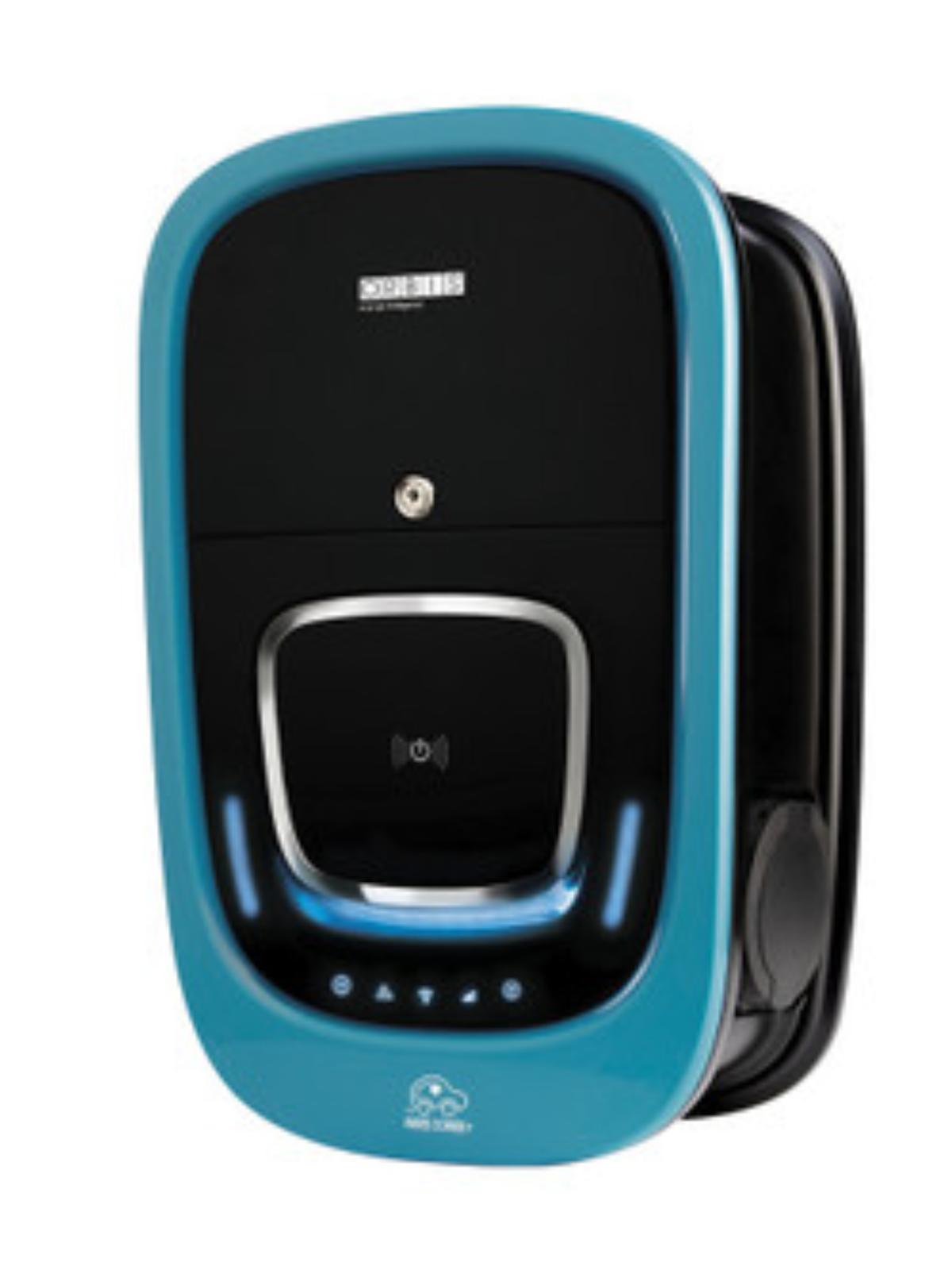

VIARIS COMBI +
VIARIS COMBI +
VIARIS COMBI +
A car, two cars, a bike or a skateboard, charge it all with our product more versatile in its configuration that adapts to any need.
Perfect for any environment, but especially designed for single-family homes with 2 vehicles or in those public or corporate environments where it is required to install a recharging point for several places.
Options:
- 10 metre connection hose
- Schuko socket outlet
- Tesla compatible push button hose
- Electrical protections: overloads and short circuits, overvoltage and leakage current
- MID-certified energy meter
Interested in the VIARIS Combi +? Get in touch.
0478 0 82 274
or fill out the form below and we will be in touch shortly
View full details
Key Features
-
ACTIVATED
Recharge with RFID cards, e-VIARIS App or management and payment platforms.
-
VERSATILE
Thanks to its space for protections and different output combinations.
-
CONNECTED
Connect and control wherever you are. Wifi, Ethernet or 4G Modem.
-
POWERFUL
Up to 22 kW + 22 kW on IK10 / IP54.
-
MODULATES
UDP-IP modulation between chargers, up to 254 VIARIS in Network.
-
SPL-ORBIS
Manage the power of your chargers and benefit from great savings.
Product Comparison
Model | VIARIS UNI | VIARIS UNI + | VIARIS UNI + BT2 | VIARIS COMBI + | VIARIS ISI | VIARIS EXO |
---|---|---|---|---|---|---|
Type of Current | AC | AC | AC | AC | AC | AC |
Application Environment | Indoor/Outdoor | Indoor/Outdoor | Indoor/Outdoor | Indoor/Outdoor | Indoor/Outdoor | Indoor/Outdoor |
Power | 7.4 kW | 7.4 kW | 7.4 kW | 22 kW | 7.4 kW | 22 kW |
Number of Departures | 1 | 1 | 1 | 2 | 1 | 1 |
Connector Type | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 |
Cable | Yes | Yes | Yes | Yes | Yes | Yes |
Additional Protections | MCB, RCD | MCB, RCD | MCB, RCD | MCB, RCD, DPS | MCB, RCD | MCB, RCD, DPS |
Mid-certified Accountant | Yes | Yes | Yes | Yes | Yes | Yes |
Standard Communications | Wi-Fi | Wi-Fi | Wi-Fi, Bluetooth | Wi-Fi | Wi-Fi | Wi-Fi |
Optional Communications | 3G/4G | 3G/4G | 3G/4G, Ethernet | 3G/4G, Ethernet | 3G/4G | 3G/4G, Ethernet |
Dimensions (Height x Width x Depth) | 438 x 431 x 89 mm | 438 x 431 x 89 mm | 438 x 431 x 89 mm | 438 x 431 x 89 mm | 438 x 431 x 89 mm | 438 x 431 x 89 mm |
N/A- Not applicable
MCB- Overload and short-circuit protection with omnipolar cut-off device, curve C.
POP- Temporary overvoltage protection.
DPS- Transient Overvoltage Protection Type 2 Class II
RCD- Continuous differential current detection device
